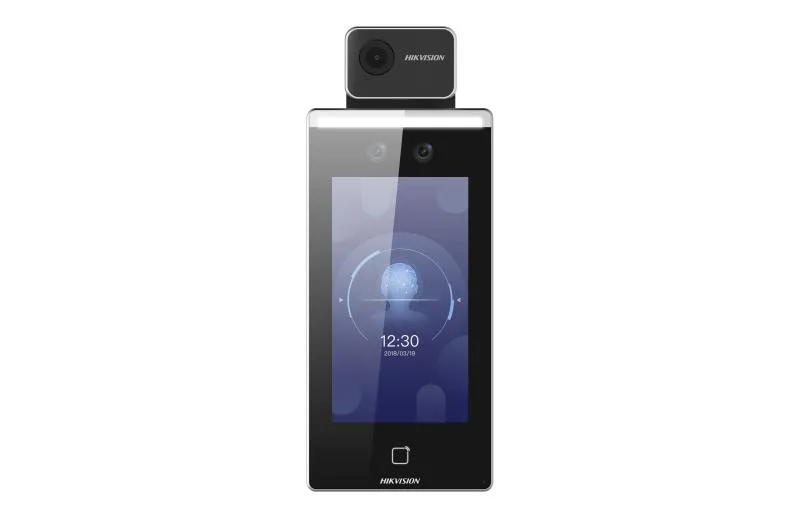

ADS-26FSG-12-12024EPG (DS-K1TA70MI-T)
Pro Face Access Terminal
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
- Recognition distance: 0.3 to 1.8 m
- Face mask detection
- Displays temperature measurement results on the authentication page
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens Built-in Mifare card reading module
- Face recognition duration ＜ 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- 6000 face capacity, 6000 card capacity, and 100,000 event capacity
Tag: HIKVISION
Spesifikasi
- Temperature measurement
- Temperature range
30 °C to 45 °C (86 °F to 113 °F) - Sensor
Vanadium Oxide uncooled sensor - Resolution
120 × 160 - Frame rate
25 fps - Measurement accuracy
0.1 °C - Measurement deviation
± 0.5 °C - Measuring distance
0.3 to 1.8 m
- Display
- Size
7-inch - Type
Touch screen
- Video
- FOV
HFOV= 46°; VFOV= 87° - Pixel
2 MP - Lens
Dual-lens
- Network
- Wired network
Support, 10/100/1000 Mbps self-adaptive
- Interface
- Network interface
1 - RS-485
1 - Wiegand
1 - Lock output
1 - Exit button
1 - Door contact input
1 - IO input
2 - IO output
1 - TAMPER
1
- Capacity
- Card capacity
6000 - Face capacity
6000 - Event capacity
100,000
- Authentication
- Card type
M1 card - Card reading distance
0 to 5 cm - Card reading duration
＜ 1 s - Face recognition duration
＜ 0.2 s per person - Face recognition distance
0.3 to 1.8 m
- General
- Power supply
12 VDC/2 A - Working temperature
0 °C to 50 °C (32 °F to 122 °F)
For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)
- Working humidity
10 to 90% (No condensing) - Application environment
Indoor and windless environment use only
Gross Weight: 1.89 kg (4.17 lb)
Net Weight: 1.04 kg (2.29 lb)
- Function
- Face anti-spoofing
Support - Live view
Support - Audio prompt
Support
