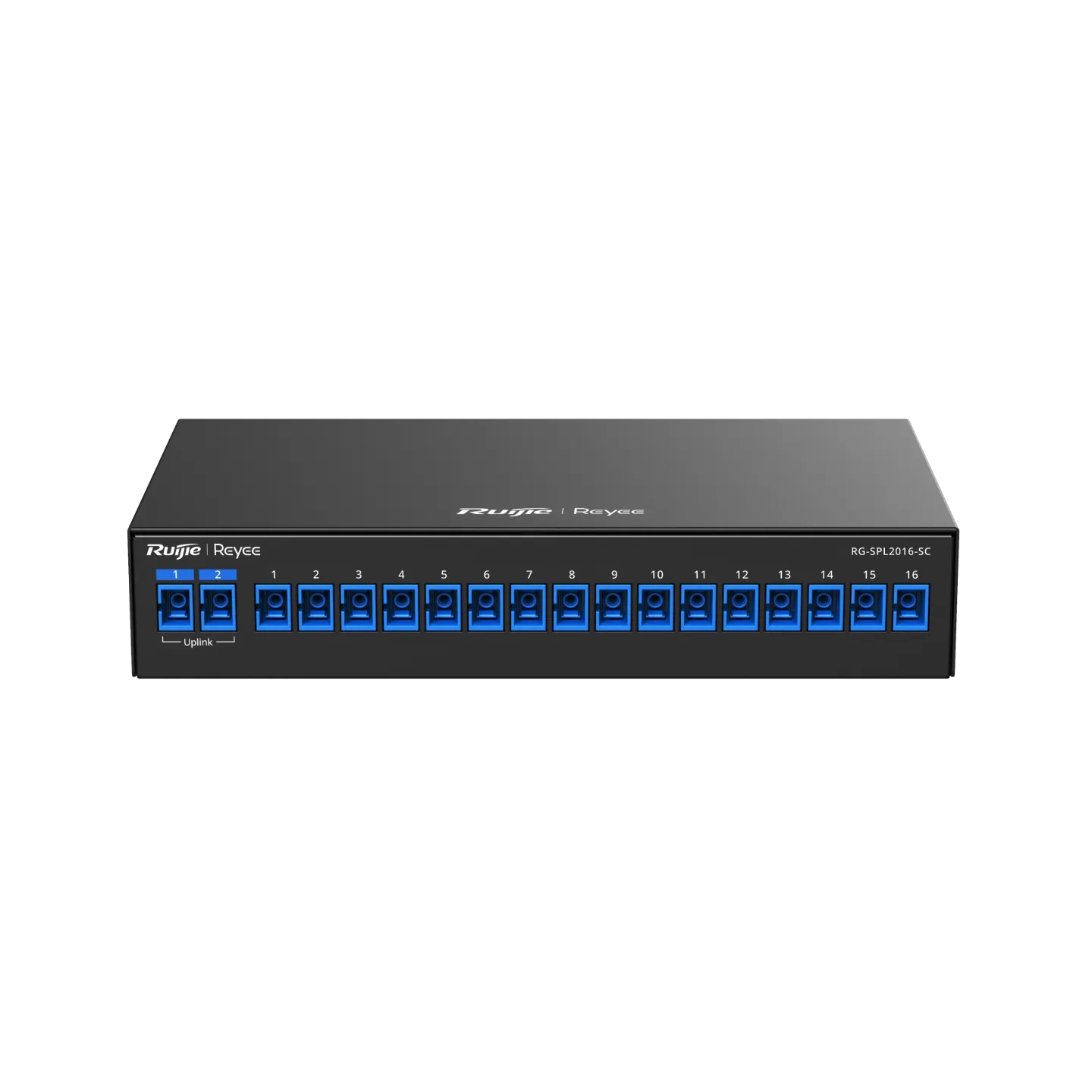

RG-SPL2016-SC
Hotel, Resort, Villa, Apartment, Factory, Enterprise, Education, etc.
Highlight Features
- Rack-Mounted as a Standalone or Combined Unit
- Wall-Mounted in a Waterproof Enclosure
- Durable Iron Casing, High Reliability
- Plug and Play
- Passive Aggregation
Tag: SME
Spesifikasi
Operating Wavelength
1260 nm to 1650nm
Weight
0.88 kg (1.94 lbs.)
Operating Temperature
–40°C to +85°C (–40°F to +185°F)
Dimensions (W x D x H)
220 mm x 130 mm x 42 mm (8.66 in. x 5.12 in. x 1.65 in.)
Temperature-Dependent Loss (dB)
≤ 0.3
Wavelength-Dependent Loss (dB)
0.4 (1310 + 40), 0.4 (1550 + 40)
Insertion Loss (dB)
≤ 14.4
Port Insertion Loss Uniformity (dB)
≤ 1.0
Return Loss (dB)
≥ 50
Polarization-Dependent Loss (dB)
≤ 0.3
Maximum Input Power (mW)
500
