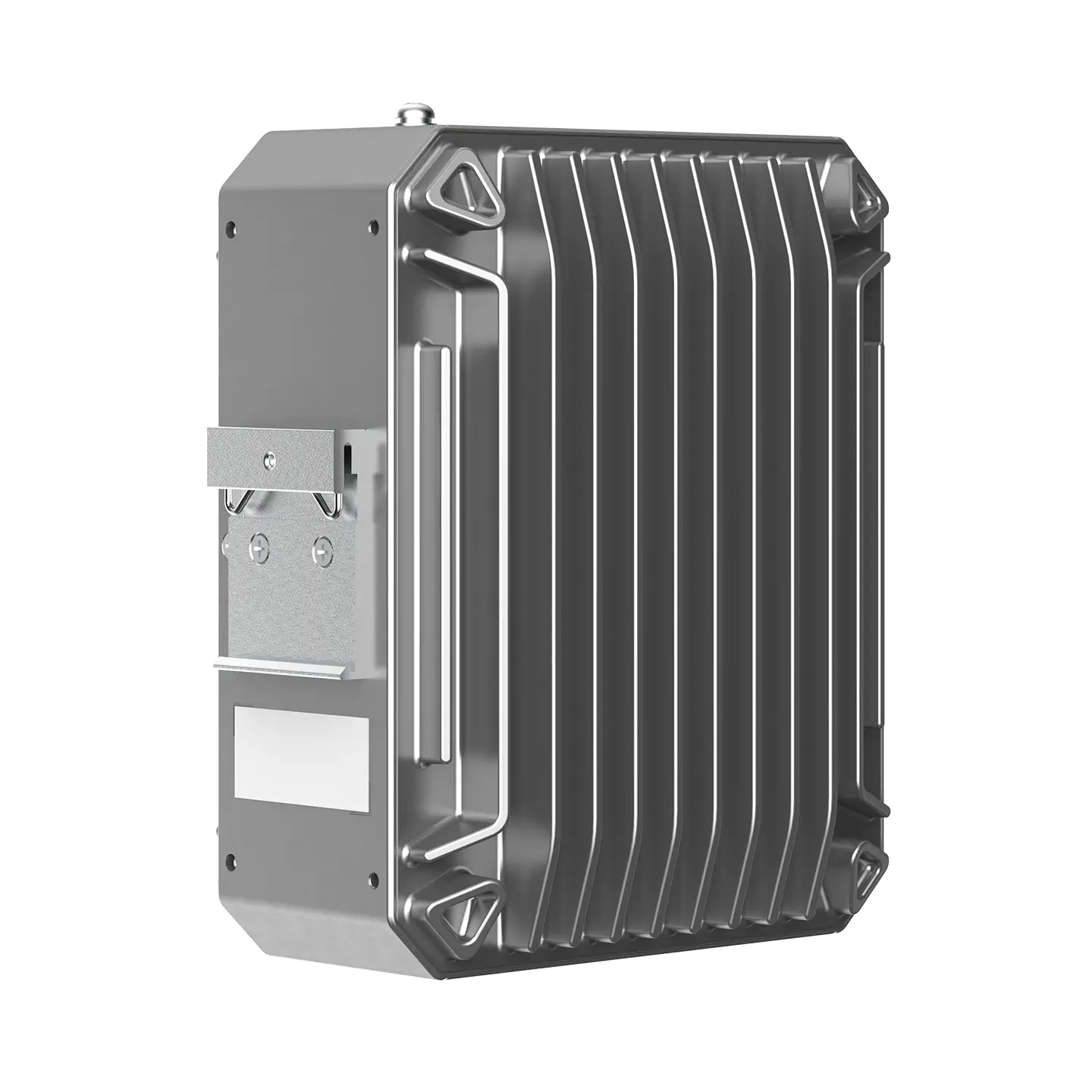

RG-NIS3100-8GT2SFP-HP
CCTV, Factory, Coastal Areas, Dusty Environment etc.
Highlight Features
- Three Different Models Meet Various Business Scenario Needs
- Unique Industrial Design Ensures Stable Operation in -40℃ to 80℃
- 8 KV Protection: The Shield Against Voltage Spike
- IP40 Against 1mm Intruders in Dusty Conditions
- ERPS ensures network stability: service failover within 50ms
- Local Network SON, Easy Configuration even without Cloud
- Ruijie Cloud :Easy Management even in Harsh Environments
Tag: SME
Spesifikasi
Product category
Layer 2
Total number of RJ45 ports
8
Number of 1GE SFP ports
2
Number of PoE Out ports
8
PoE budget
240 W
Forwarding rate
14.88 Mpps
MTBF
400,000 hours
Altitude
Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
PoE watchdog
Yes
Warranty
5 years
Total number of optical ports
2
Number of 10/100/1000BASE-T ports
8
Number of PoE/PoE+ Out ports
8
PoE power pins
1–2 (+), 3–6 (-)
Switching capacity
20 Gbps(bit/s)
Operating temperature
-40ºC to +65ºC (-40°F to 149°F) (installed in a sealed cabinet) -40ºC to +70ºC (-40°F to 158°F) (installed in a fume hood with a ventilation speed of at least 80LFM (Line Feet Minute)) -40ºC to +75ºC (-40°F to 167°F) (installed in a fume hood with a ventilation speed of at least 200LFM (Line Feet Minute)) -40ºC to +80ºC (-40°F to 176°F) (installed in a fume hood with a ventilation speed of at least 400LFM (Line Feet Minute))
Safety compliance
IEC 62368-1
Port isolation
Yes
