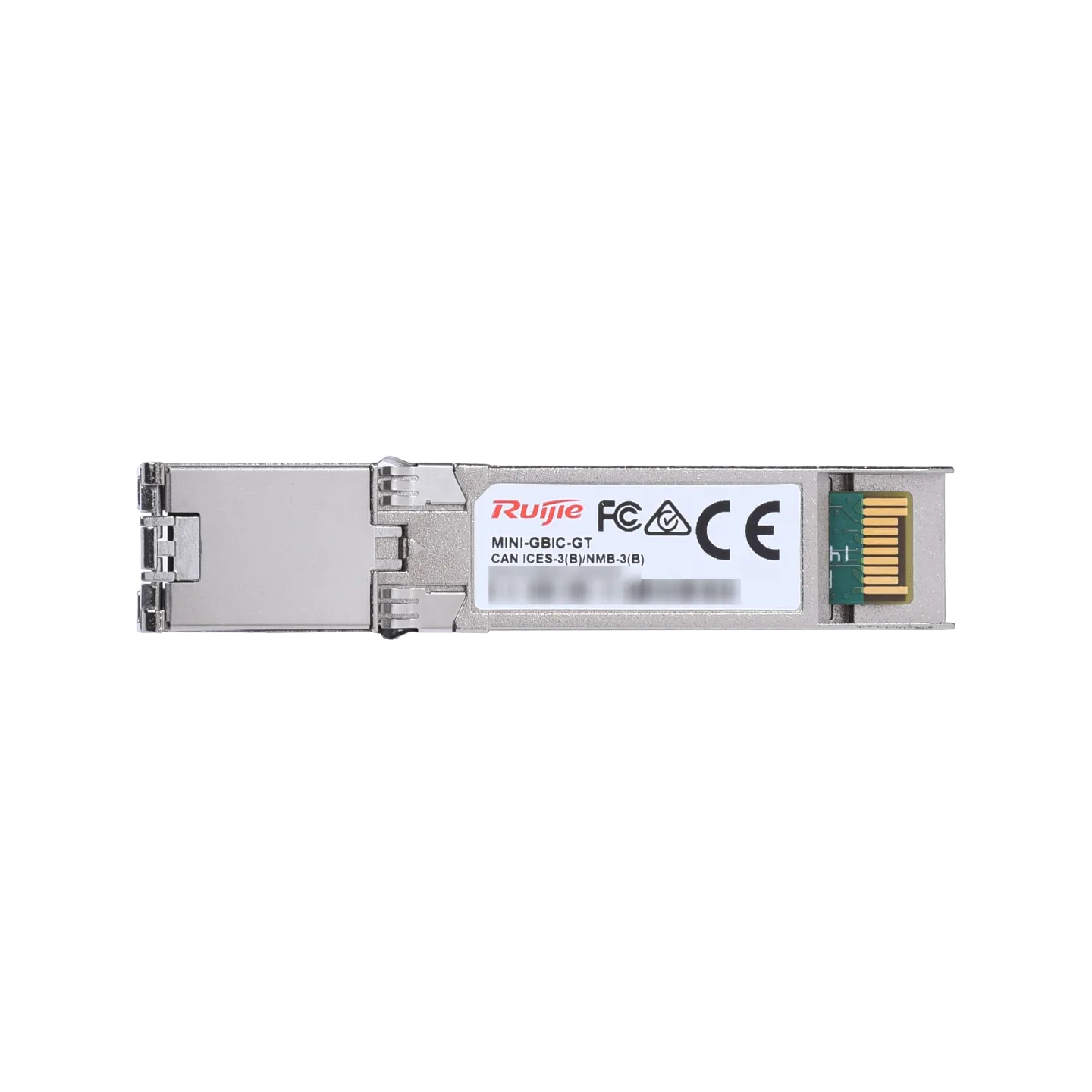

MINI-GBIC-GT
Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs)
Highlight Features
- High-speed data transmission of up to 1.25Gbps
- Maximum transmission distance of up to 100 meters
- Hot-pluggable feature allows for easy installation or removal without disrupting the network
- Compatible with various networking equipment, making it a versatile choice for different setups
- Conforming to IEEE 802.3ab, SFP+ MSA, and RoHS standards
Tag: SME
Spesifikasi
Data rate
1.25 Gbps
Form factor
SFP
Connector type
Duplex LC
Cable type
MMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
VCSEL
Receiver type
PIN
Reach
550 m (1,804.46 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1.5 W
Wavelength (nm)
850
Max. transmit power (AVG)
0 dBm
Min. transmit power (AVG)
–9.5 dBm
Min. extinction ratio
≥ 9 dB
Receive sensitivity (OMA)
< –17 dBm
Overload optical power (AVG)
0 dBm
Operating temperature
0°C to 70°C (32°F to 158°F)
Operating humidity
10% RH to 90% RH
Storage temperature
–40°C to +85°C (–40°F to +185°F)
Storage humidity
10% RH to 90% RH
Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
