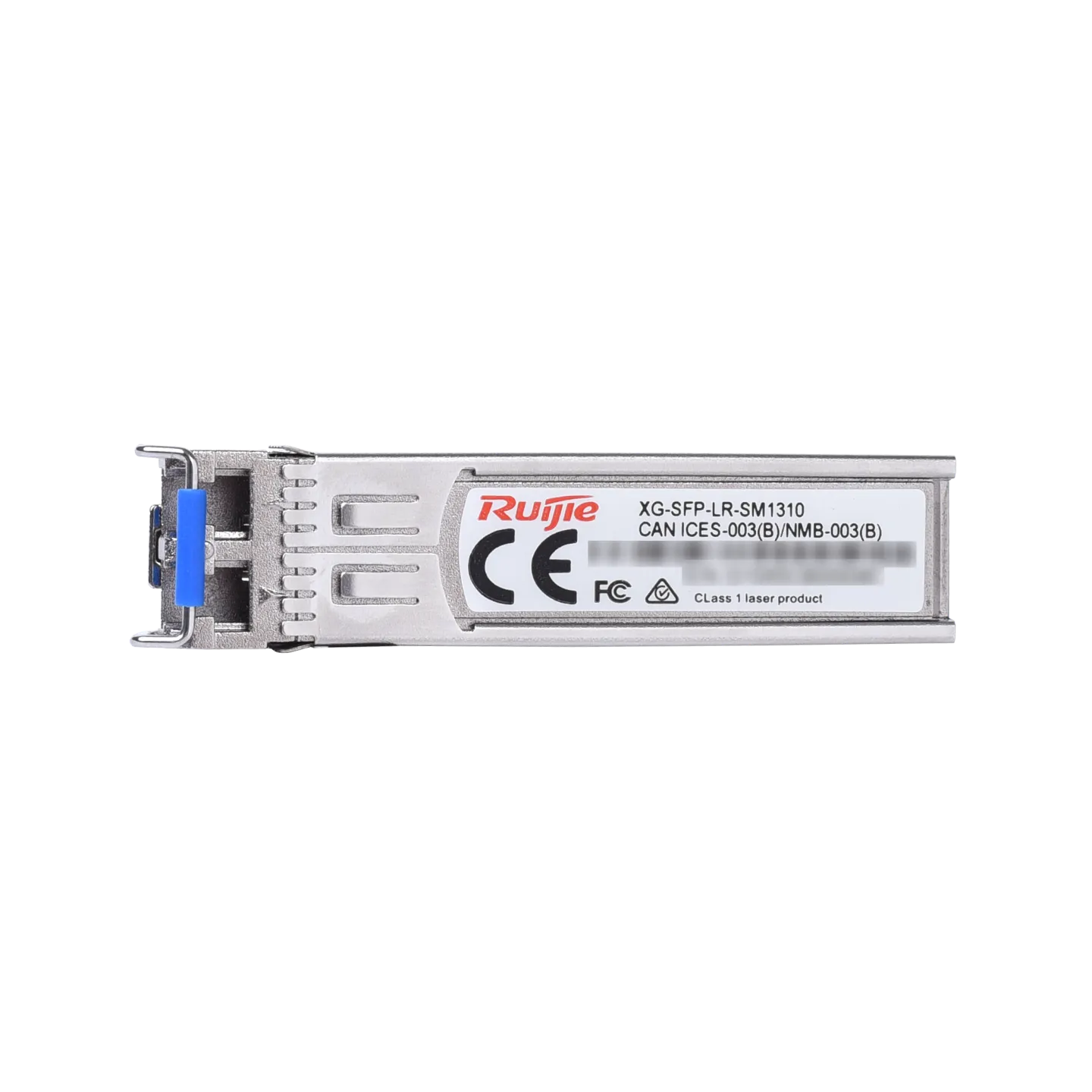

XG-SFP-LR-SM1310
Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection
Highlight Features
- Max. power consumption 1.5 W
- Hot pluggable SFP+ MSA compliant
- Digital optical monitoring capability for strong diagnostic capabilities
- Compliant with IEEE 802.3z Gigabit Ethernet
- Class 1 Laser safety and RoHS compliant
Tag: SMB
Spesifikasi
Data rate
10.3125 Gbps
Form factor
SFP+
Connector type
Duplex LC
Cable type
SMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
DFB
Reach
10 km (32,808.40 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1.5 W
Wavelength
1310 nm
Max. transmit power (AVG)
0.5 dBm
Min. transmit power (AVG)
–8.2 dBm
Min. extinction ratio
≥ 3.5 dB
Receive sensitivity (OMA)
< –12.6 dBm
Overload optical power (AVG)
0.5 dBm
Operating temperature
0°C to 70°C (32°F to 158°F)
Operating humidity
10% RH to 90% RH
Storage temperature
–40°C to +85°C (–40°F to +185°F)
Storage humidity
10% RH to 90% RH
Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
Receiver type
PIN
