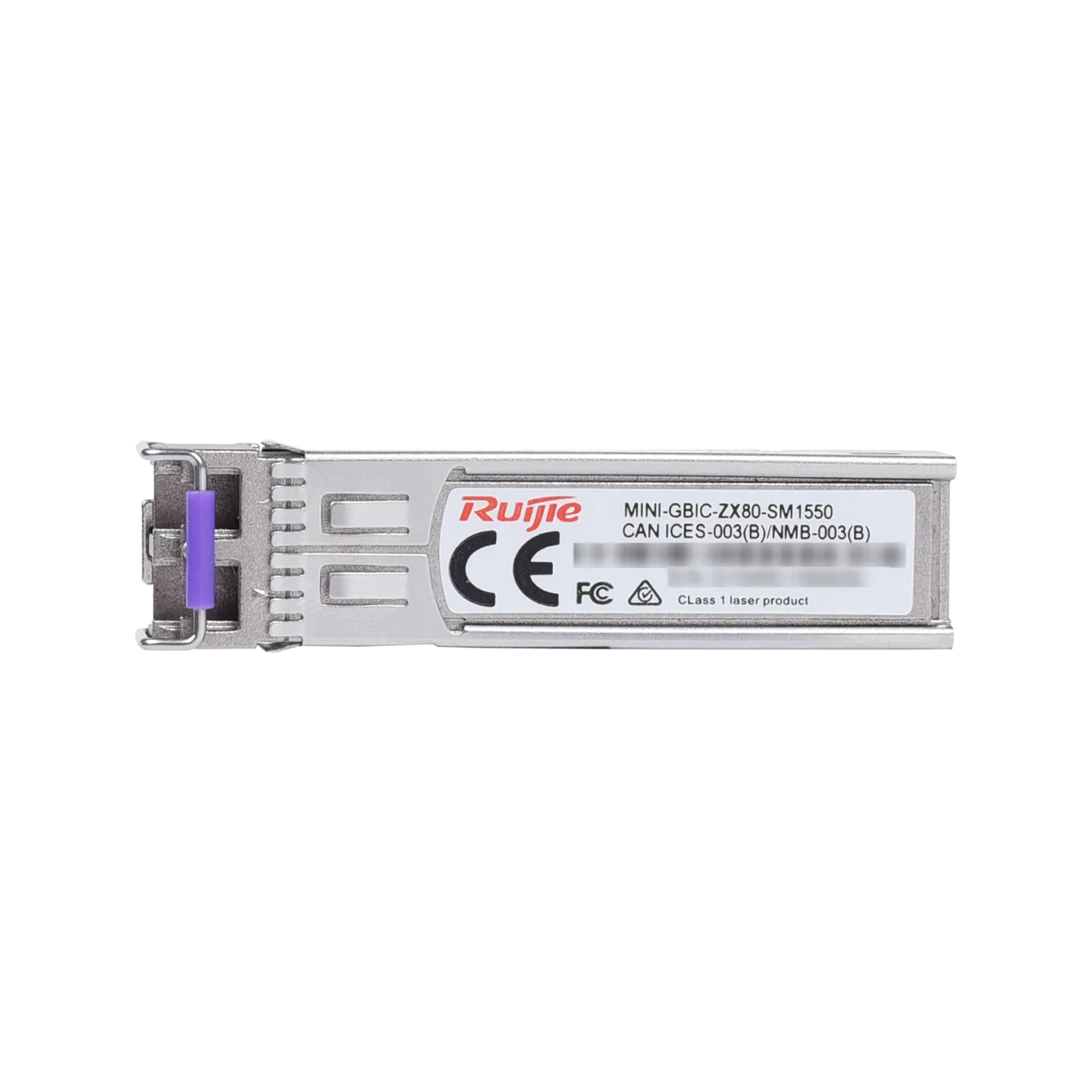

MINI-GBIC-ZX80-SM1550
Highlight Features
- Max. power consumption 1.5 W
- Saving half fiber by using only one fiber for transmiting and receiving
- Hot pluggable SFP MSA compliant
- Digital optical monitoring capability for strong diagnostic capabilities
- Compliant with IEEE 802.3z Gigabit Ethernet
- Class 1 Laser safety and RoHS compliant
Tag: SME
Spesifikasi
Model
MINI-GBIC-ZX80-SM1550
Data rate
1.25 Gbps
Form factor
SFP
Connector type
Duplex LC
Cable type
SMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
DFB
Receiver type
PIN
Reach
80 km (262,467.19 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1.5 W
Wavelength (nm)
1550
Max. transmit power (AVG)
5 dBm
Min. transmit power (AVG)
0 dBm
Min. extinction ratio
≥ 9 dB
Receive sensitivity (OMA)
< –27 dBm
Overload optical power (AVG)
–3 dBm
Operating temperature
0°C to 70°C (32°F to 158°F)
Operating humidity
10% RH to 90% RH
Storage temperature
–40°C to +85°C (–40°F to +185°F)
Storage humidity
10% RH to 90% RH
Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
