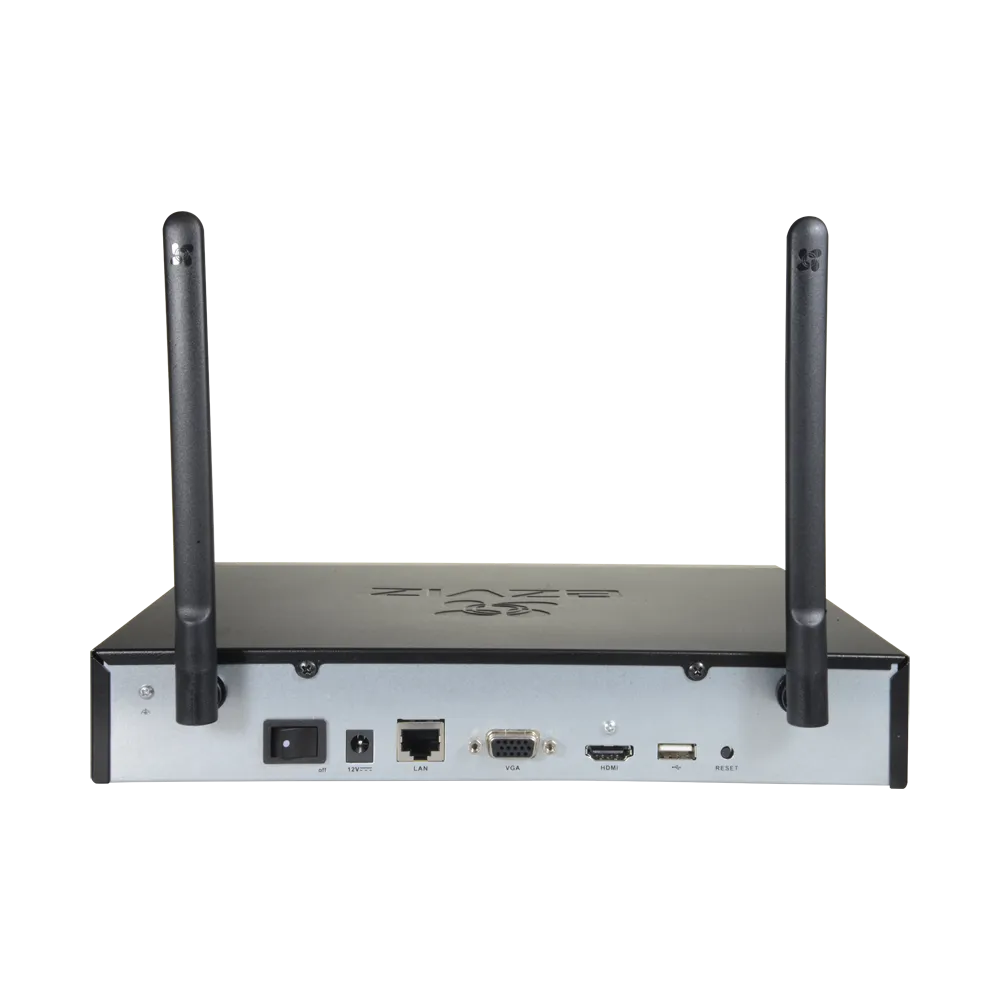

CS-X5S-4W
Wireless NVR with HDMI & VGA Outputs
Reliable, easy storage for your security system
The X5S is a large-capacity storage solution tailored to support multi-camera security systems for 24/7 recording in even high video quality. Users can confidently save and keep important footages on the local NVR device, which ensures smooth storage and strict data protection.
Tag: EZVIZ
Spesifikasi
| Specifications | |
| Model | CS-X5S-R100-4W, CS-X5S-R100-8W |
| IPC Access Capability | |
| Wireless/Wired IPC Access Capability |
3K *4/3K *8 |
| Wired IPC Access Capability |
3K *4 (X5S-4W) / 3K *8 (X5S-8W) |
| Network Parameters | |
| Antenna Number | 2 |
| Max Wireless Range | 100m |
| Radio Frequency | 2.4G |
| Etdernet Port | One 10/100M adaptable Etdernet interface |
| Required Access Bandwidtd | 50 Mbps/100 Mbps |
| Video Output | |
| VGA | 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz |
| HDMI | 1 channel resolution up to 2592*1944/30HZ |
| Audio/Video Codec | |
| Recording Resolution | 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF |
| Video Encoding | H.265, H.264 |
| Decode Playback | Supports 4*3K/Supports 8*3K |
| Video Recording Management |
|
| Video Recording Mode | Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording |
| Backup Mode | Hard disk backup, Internet application backup |
| Playback Mode | Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback |
| Open Protocol | |
| Open Protocol Support | HIKVISION, ONVIF (V.2.5) |
| HDD | |
| Interface Type | One built-in SATA port |
| Capability | Supports 1TB to 8TB 3.5-inch HDD |
| External Interface | |
| Audio Input/ Output | Not support |
| Hardware Reset | Supports |
| USB2.0 Interface | 2 |
| Dimensions | |
| Product Dimensions | 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch) |
| Packaging Dimensions | 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch) |
| Power Supply | |
| DC | 12V/1.5A |
| Consumption | |
| Standby status | ≤8W |
| Weight | |
| Net Weight | 932 g |
| In tde box | |
| In tde box | - X5S NVR × 1 |
| - Power Adapter × 1 | |
| - Mouse × 1 | |
| - Screw Kit × 1 | |
| - Regulatory Information × 2 | |
| - Quick Start Guide × 1 | |
| Certifications | |
| Certifications | CE / UL / RoHS / WEEE / REACH |
