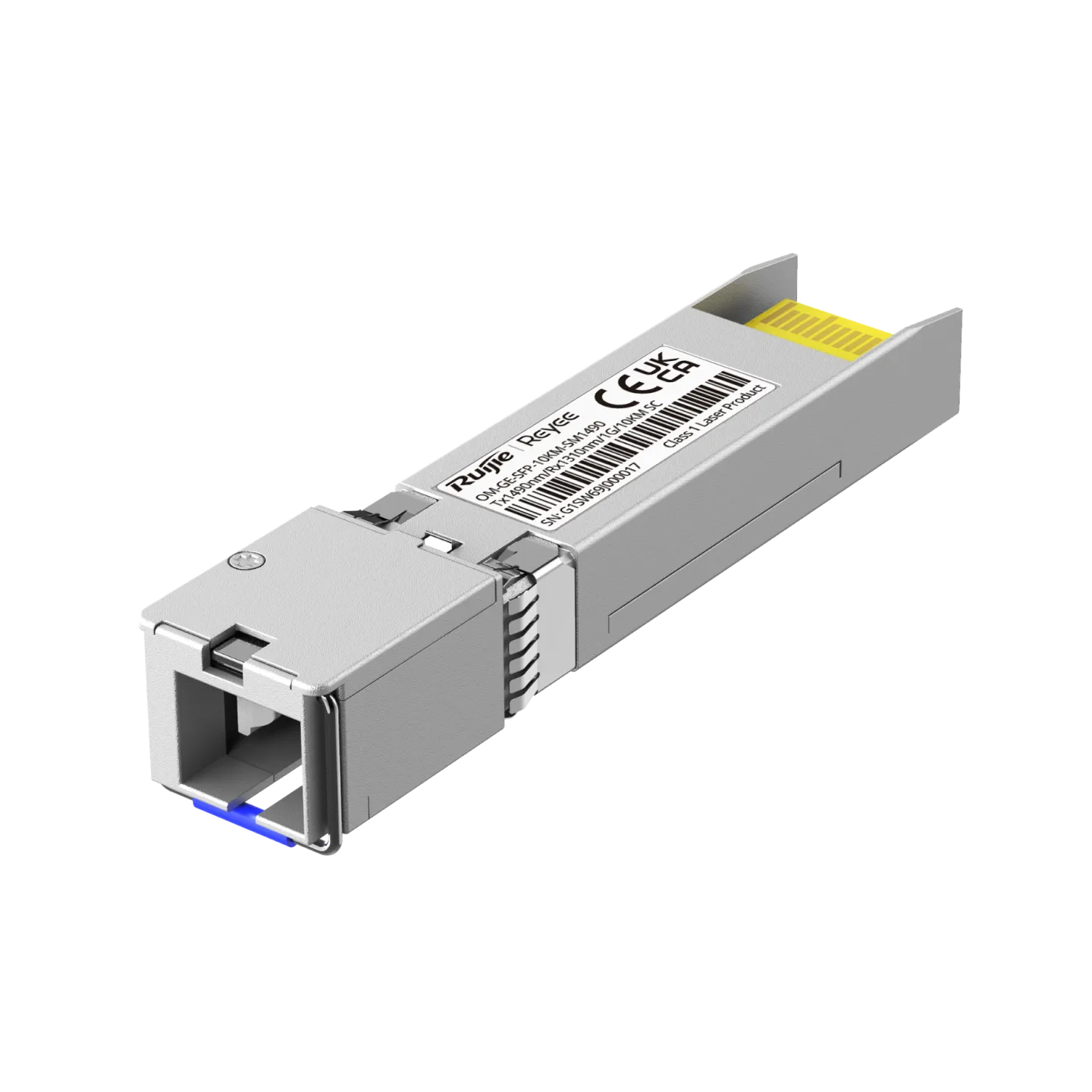

OM-GE-SFP-10KM-SM1490
Highlight Features
- 1490nm continuous-mode transmitter with DFB laser
- 1310nm burst-mode receiver with APD-TIA
- 3.3 V operating voltage
Tag: SME
Spesifikasi
Operating Voltage
3.14 V to 3.46 V
Operating Temperature
0°C to 70°C (32°F to 158°F)
Operating Humidity
5％ to 85％
Rx Wavelength
1290 nm to 1330 nm
Rx Power
–32 to –12 dBm
Receiver Sensitivity
–32 dBm
Max. Power Consumption
1.5 W
Storage Temperature
–40°C to +85°C (–40°F to +185°F)
Tx Wavelength
1480 nm to 1500 nm
Tx Power
3 to 7 dBm
Weight
0.035 kg (0.08 lbs.)
Tx Rate
1.25 Gbps
